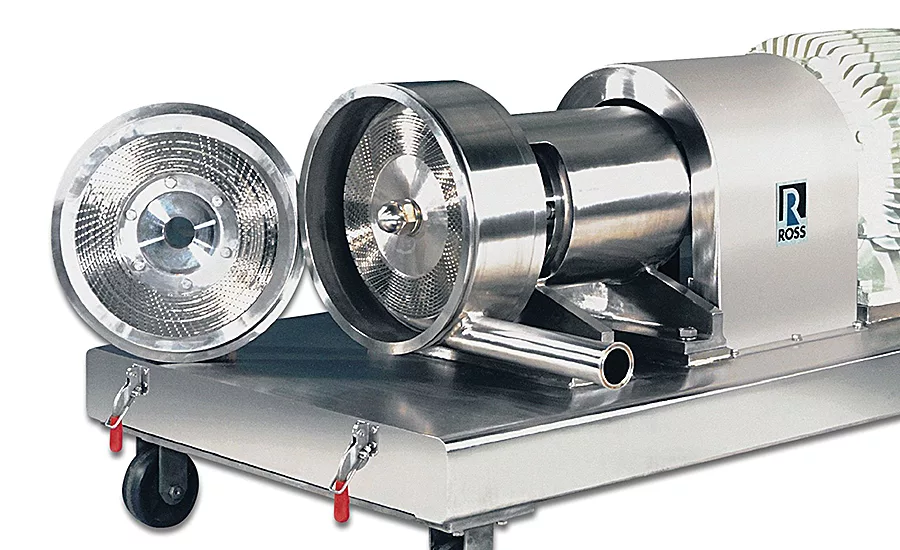

Used for inline emulsification, particle size reduction and homogenization, the Ross X-Series CIP-ready ultra-high shear mixer features a machined rotor/stator that runs at tip speeds over 11,000 ft./min. and forces product through concentric rows of intermeshing teeth. All wetted parts are Type 316 stainless steel machined to a 32 Ra finish. Rated for 150 psig at 250°F, the mix chamber includes tri-clamp inlet/outlet connections and can be supplied with a heating/cooling jacket. The mixer comes with a bearing assembly comprised of an oil sump with a cooler and circulation pump.

Charles Ross & Son Company; 800-243-ROSS; www.mixers.com
