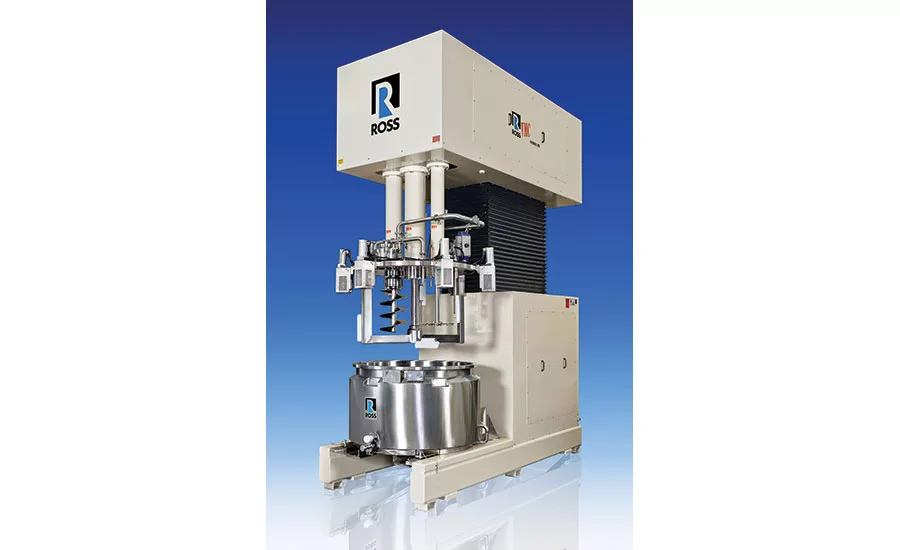

ROSS VersaMix Model VMC-150 multi-shaft mixer
Charles Ross & Son Company - www.mixers.com
Featuring multiple automation and safety functions, the 150-gal. ROSS VersaMix Model VMC-150 triple-shaft mixer has 3 independently driven agitators, including a high-speed saw-tooth dispersing blade, a 3-wing anchor to transport viscous product throughout the mixing zone and a third shaft, frequently a high-shear rotor/stator homogenizer for emulsification. The 6 pneumatic clamps are rated for 4,000 lb. each for remote locking of the mix vessel to the mixer cover; the clamps also function as redundant limit switches, allowing operation only when secured. The mixer also features automated valves for powder feed and CIP liquids, an RTD multi-point temperature sensor, built-in vacuum pump assembly, load cell system and centralized HMI.
