Fabricated from Type 304 stainless steel with an 80-grit interior finish, the mixing trough includes a two-piece hinged cover with quick disconnect pin hinges, FDA-compliant silicone gasket, and NEMA 12 safety interlock switches for dust-tight operation and safe access during cleaning and maintenance. A removable Type 304 stainless steel safety grate allows operation with the cover open while providing the appropriate operator protection.

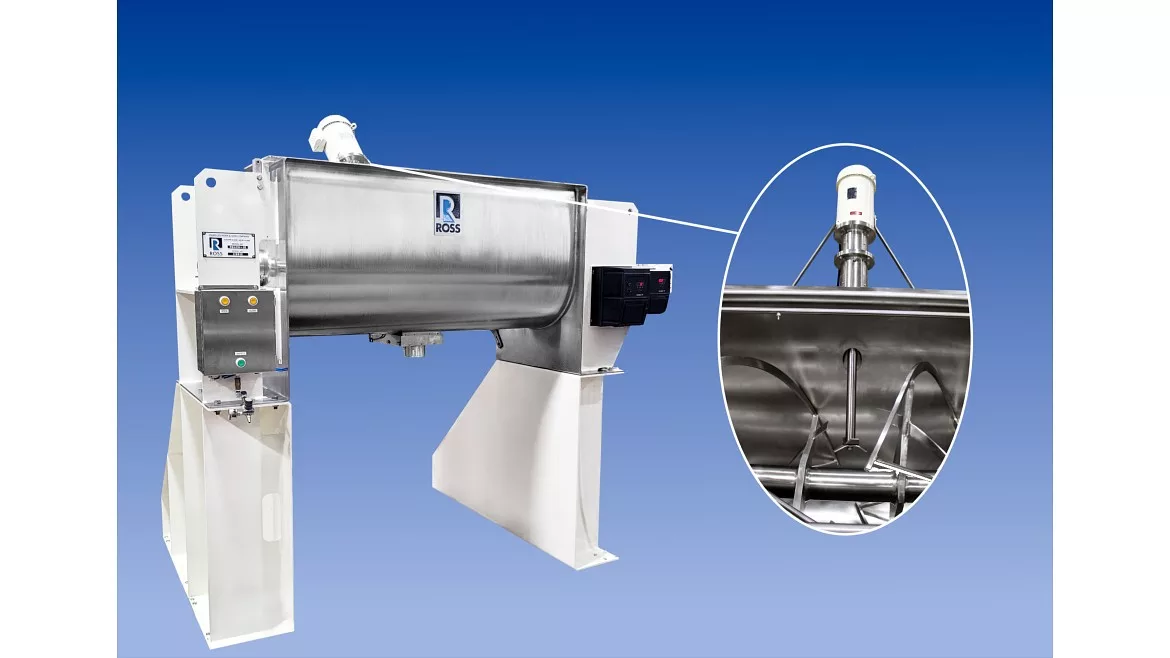

To support dispersion of minor ingredients and reduce agglomerates, this blender is equipped with a high-speed stainless-steel chopper mounted on the top sidewall at a 45-degree angle. The four bladed chopper operates at speeds up to 1,800 RPM and is powered by a 5 HP TEFC motor to ensure efficient dispersion and improved batch consistency.

A pneumatically operated 4-inch dust-tight knife gate valve enables controlled discharge and simplified cleanout, while support legs provide 48-inch clearance beneath the discharge valve for downstream material handling. A load cell system rated for 4,000 lbs. supports accurate batch weighing and process monitoring. Operator controls include start/stop functionality, variable speed adjustment, forward/reverse operation and digital monitoring of speed and motor load for each agitator, along with two handed pushbutton controls for the discharge valve.
