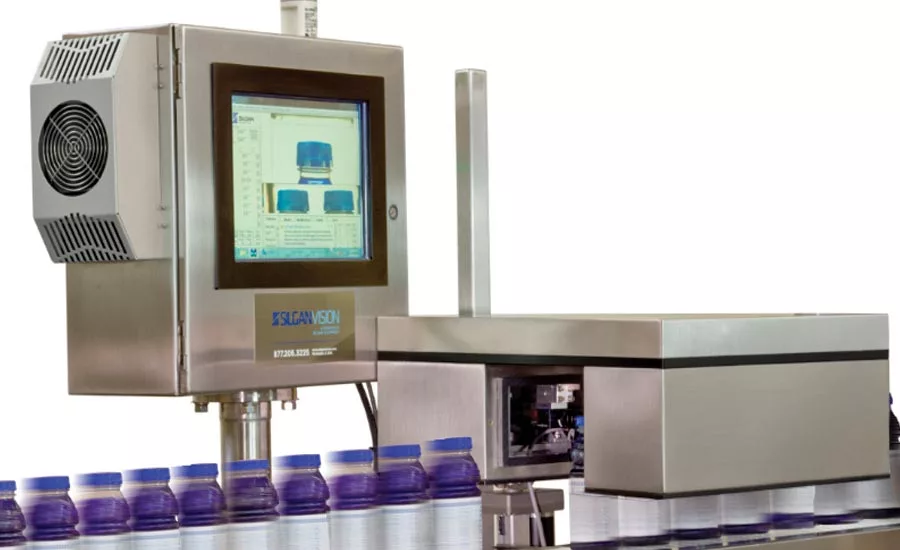

Bottle and Cap Vision Inspection System
Company: Silgan Equipment
Website: www.silgancls.com
Equipment Snapshot: The Silgan Equipment 51R56 vision inspection system inspects filled bottles for loose, skewed and missing caps, damaged or missing tamper-evidence bands, and low fill levels. Additional available system options include confirming proper cap color and graphics. The system efficiently detects and rejects incorrectly capped, damaged or incompletely filled containers before they can proceed downstream and enter the marketplace.
For the latest insights on developing cannabis-infused food and beverages, visit cannabisproductsmagazine.com
Silgan Equipment has upgraded the 51R56 system to version 51R56G by replacing the previous cameras with high-resolution GigE Flir cameras. At the same time, previous Windows 7 operating system software has been replaced by new software operating on Windows 10.
The unit’s multiple cameras conduct 360-degree inspection of passing containers. The vision tunnel is mounted on a stand that enables the unit to be positioned easily over an existing conveyor line, eliminating the need to break into a line to provide space. This configuration also enables the unit to be quickly raised or lowered as it inspects different height containers.
The 51R56G can inspect cap sizes from 28 mm to 43 mm, and up to 82 mm with changes to camera lenses and lighting. The vision unit tunnel includes a motorized height adjustment that adjusts the unit as the recipe for a new bottle height is activated. Custom LED lighting within the tunnel supports clear visual images.
Both the HMI and the vision unit are NEMA 4X rated, providing watertight washdown protection.
